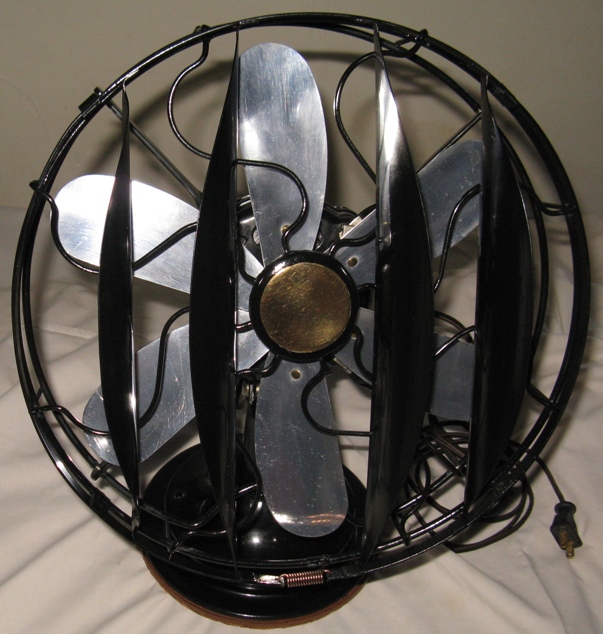

Unusual 6 blade fan completely restored in black lacquer. Has a stamped steel body with an open motor design and many brass accents.

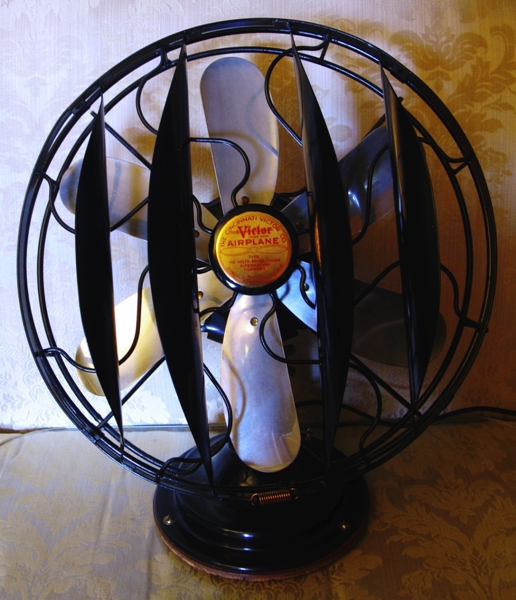

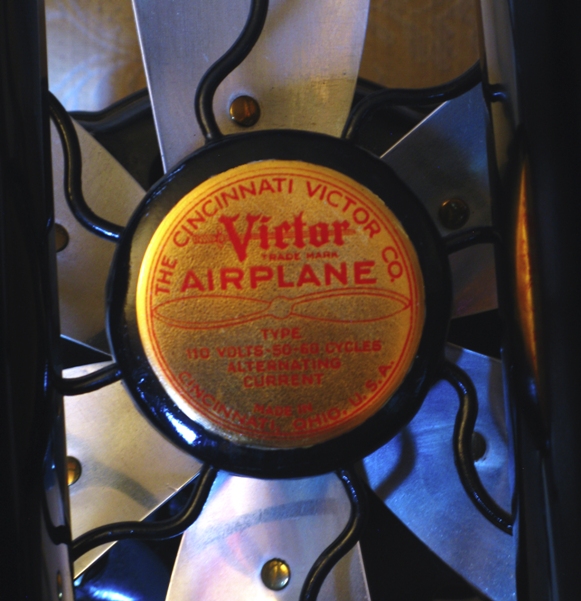

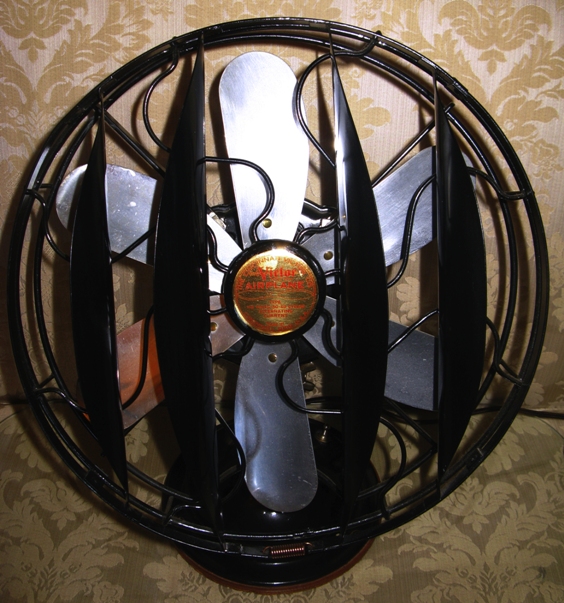

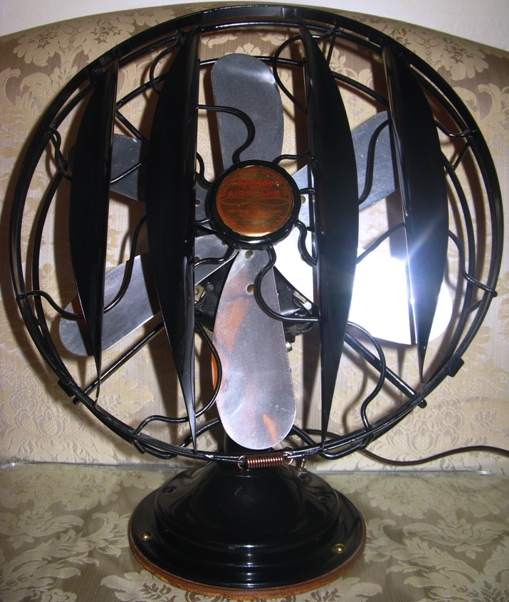

The solid brass emblem in the center is not original to the fan and is used to reinforce the structure of the cage. Very solid and quite tough. Without it the pot metal center would crumble lke many Victor fans of this type have.
The fins are used to distribute air evenly so an oscillator is not necessary.

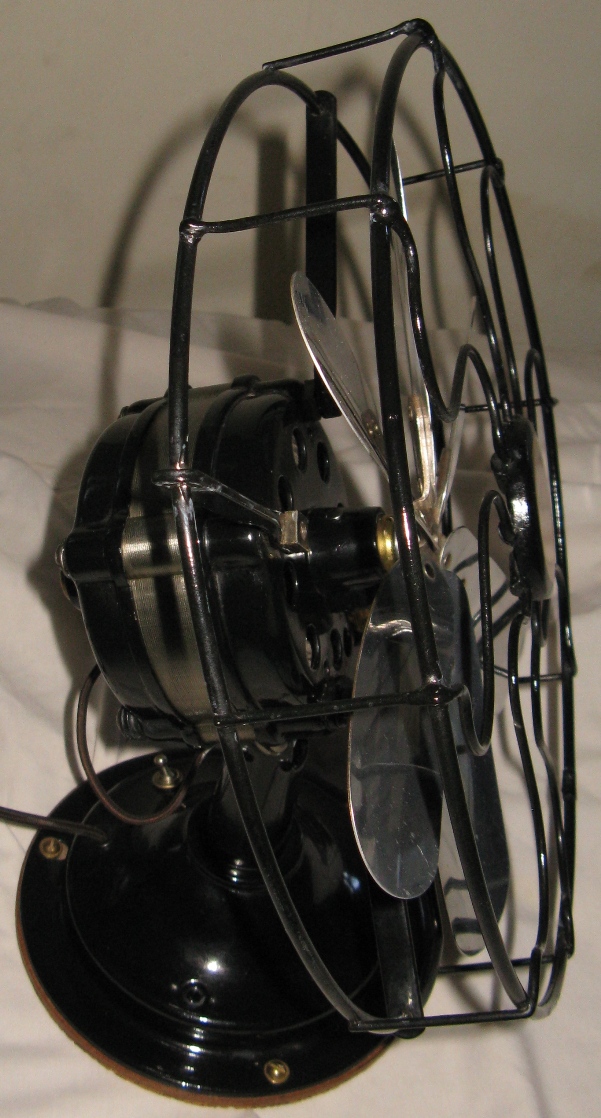

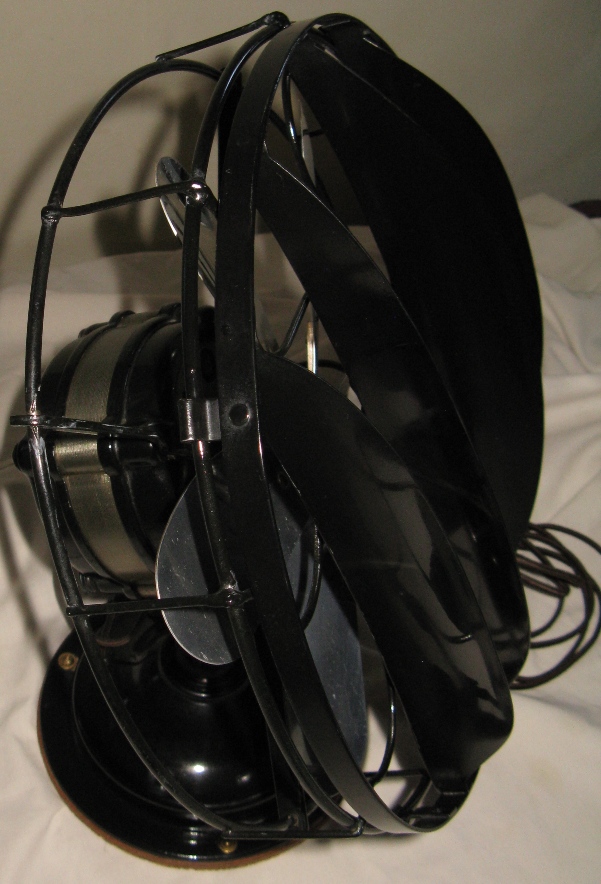

Left side view.

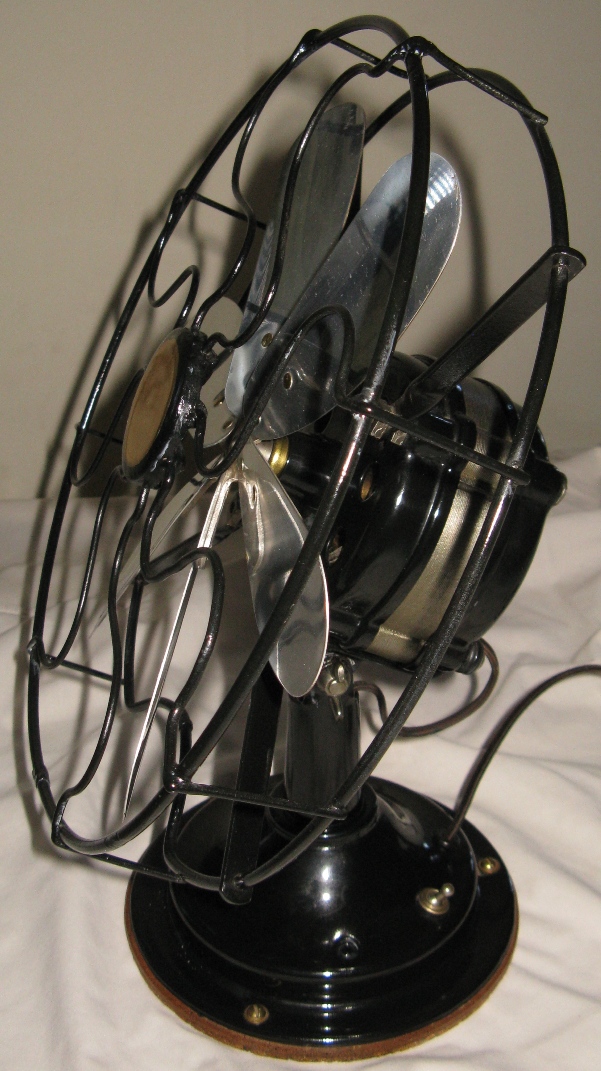

Right side view.

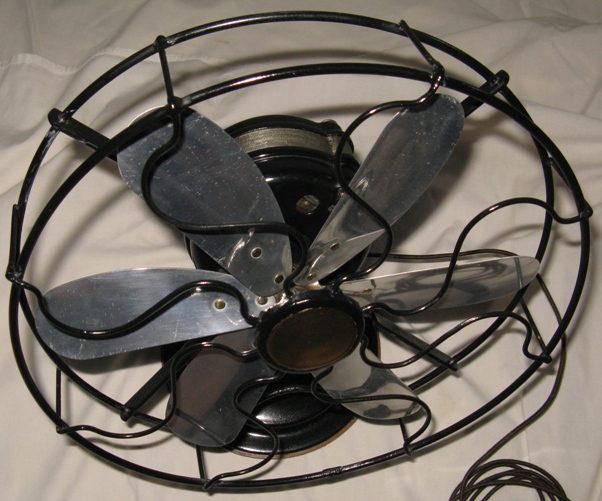

Top angled view that reveals some wax on the cage that was cleaned up later.

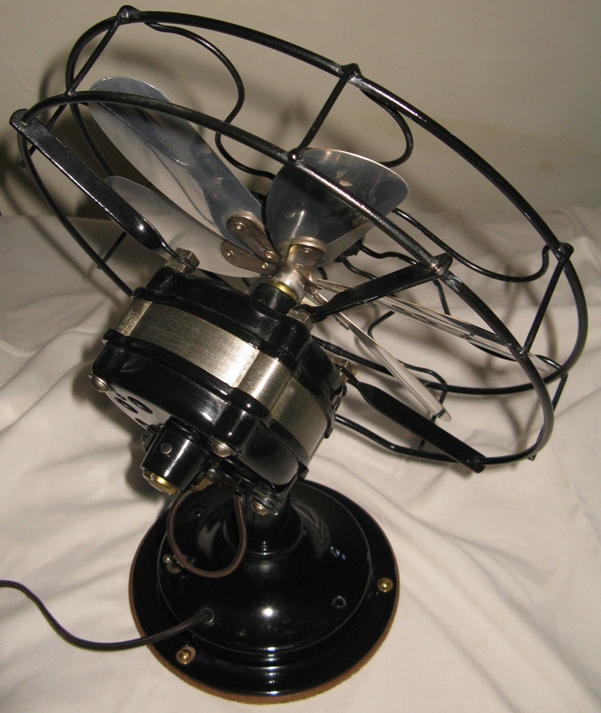

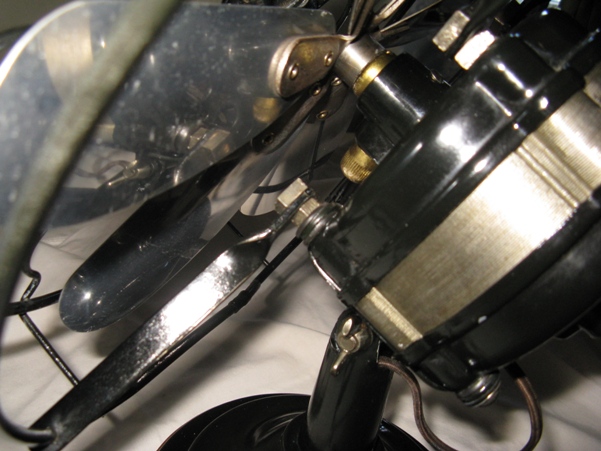

Back side angled view reveals the motor housing only covers part of the stator and appears to be a little futuristic for the time. The outside of the stator was polished and coated in a specialized clear lacquer. The motor windings have been reinsulated.

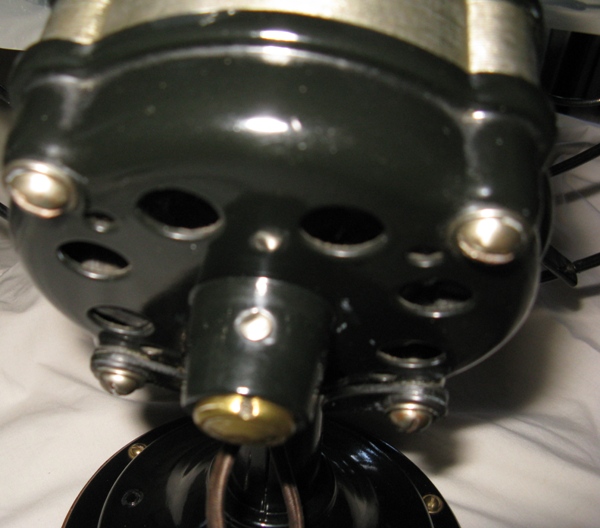

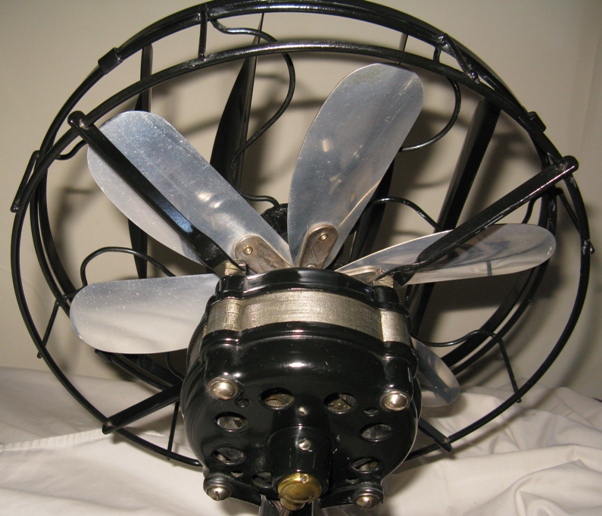

The back of the motor housing where one of the oil cups reside is made from pot metal. Most of these are cracked and crumbling. This one has been repaired with high grade epoxy and is very tough. No evidence a repair was ever done. A very smooth finish.
Has brass oil cups and a small oil filler with cap.

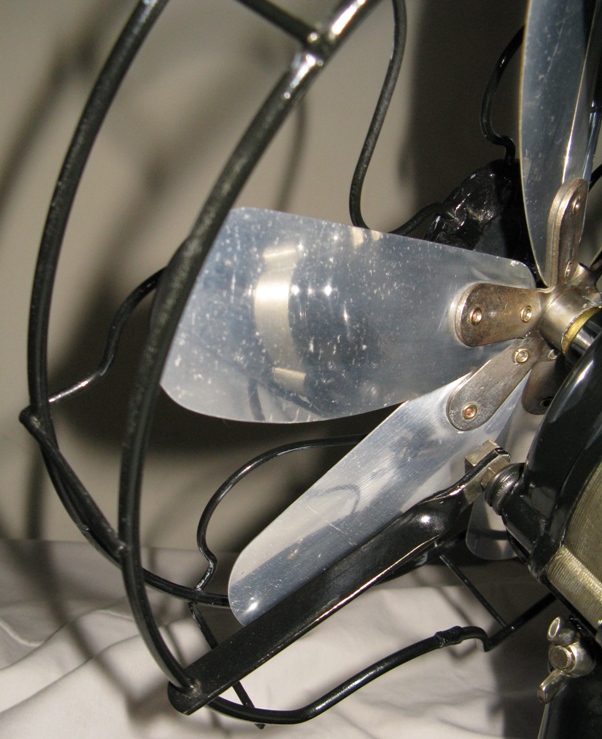

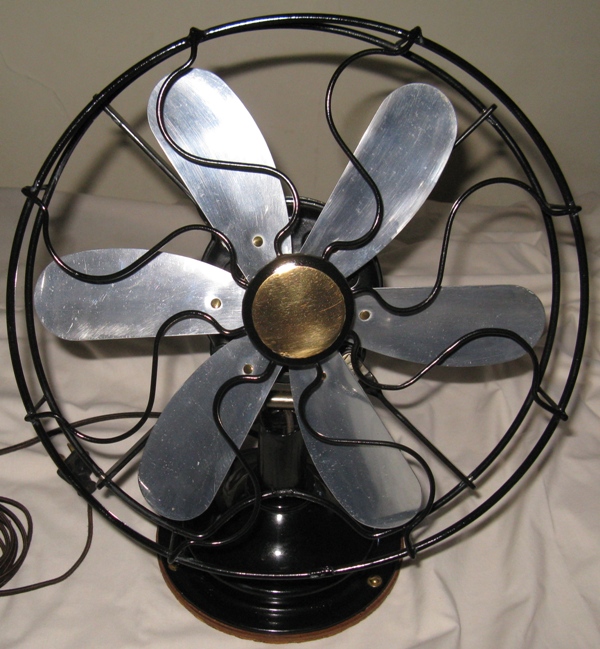

The blades have been polished and are very shiny. The square nuts appear to be original to the fan and have been clear coated.
There are discolorations in the blade that look like scuffs or scratches. Have sanded and polished, but they don't seem to go away. Not sure the imperfections in the blades can be polished out.

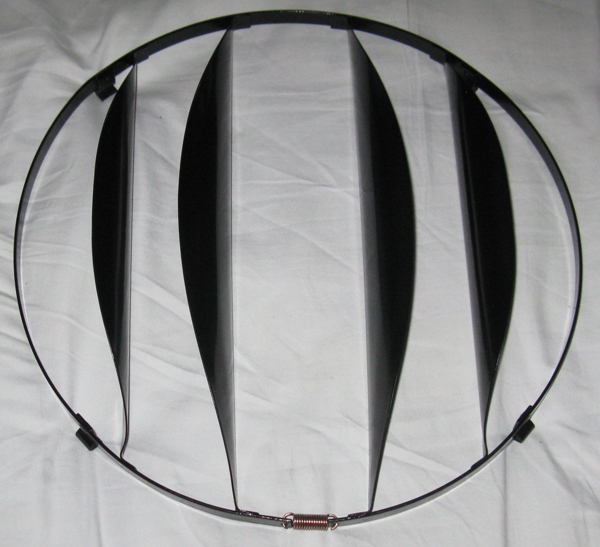

Restored spreader with copper plated spring. The spring has also been clear coated.

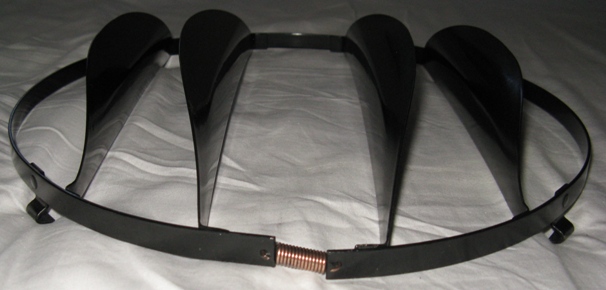

Spreader side view. Very smooth and reflective.

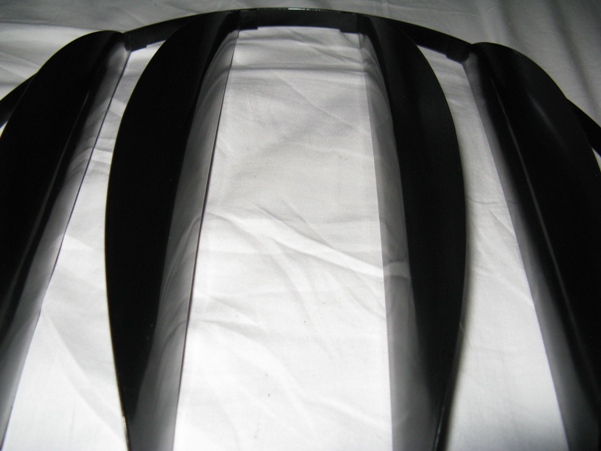

Closeup of the fins.

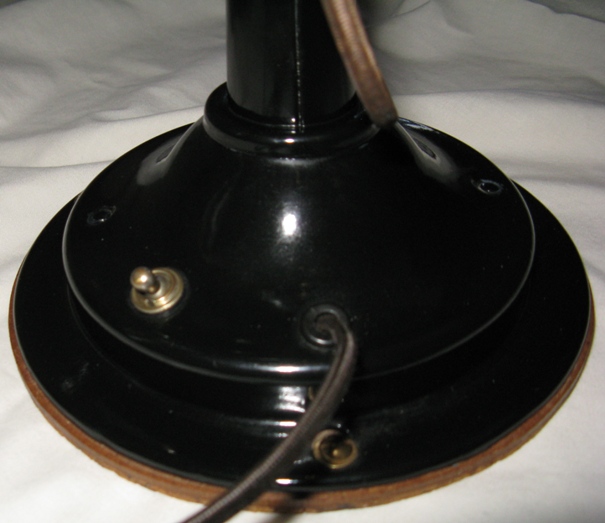

The cord is a replacement and is an 18 gauge brown rayon covered copper wire. The switch is very old, but not sure if it is original to the fan.

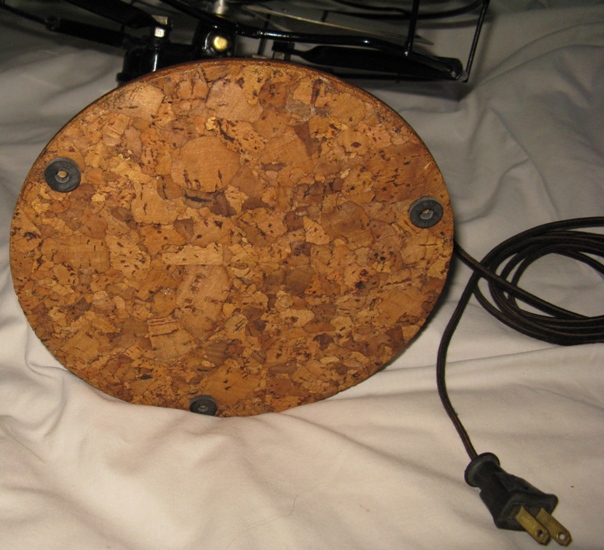

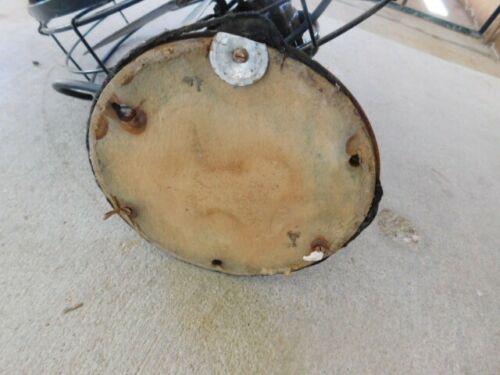

Replacement for the bottom plate. Not sure what the original ever looked like. This one is nice and has rubber grommet inserts.
Victor Airplane Breeze Spreader 12" Aluminum 6 Blade Fan, Circa 1933
A collection of images from a restored depressionary era electric fan which was made around 1933 (possibly as early as 1931). A single speed stationary fan with a screw on blade. Has the optional breeze spreader attachment so that an oscillator is not needed. Has a black lacquer finish and a lot of shine. Very odd looking piece of engineering whose design and build look a little futuristic for its time. Moves a lot of air with its very fast motor and sounds a little like a World War I biplane. There is another model of this type called the "Breeze Spreader" and is a later model than the one in this gallery.
The flash from the camera makes the unit look less smooth and polished than it really is. You can zoom in on the images if you mouse over them. During autoplay zoom is disabled. Shrinking the browser window will shrink its contents possibly making it easier to view the gallery.
Valued in the range of $425 - $575.
