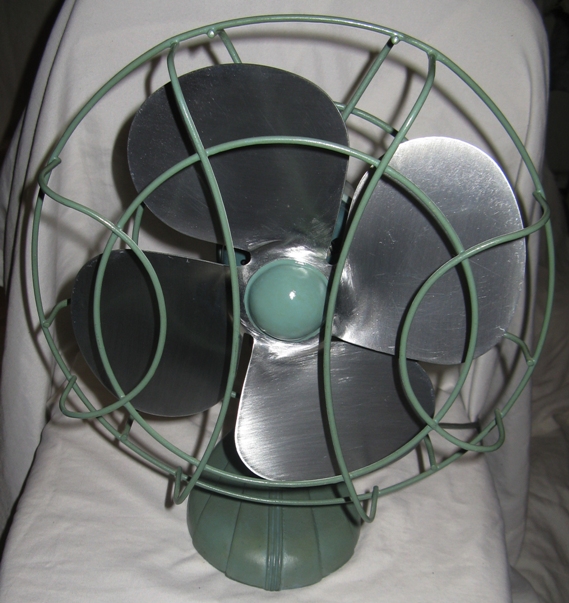

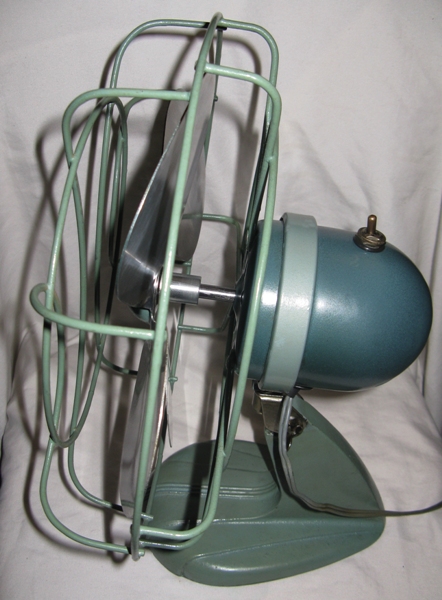

A nice single speed oscillator desk fan. A multi-colored painted finish featuring a heavy cast iron base and steel cage. The center cone is not original to the fan, but a replacement for the missing one. A polystyrene cone was glued into the center in place of the missing badge and painted with 10 coats of paint over a 2 year period of time to produce a hard durable finish. It looks a lot better than the original badge.

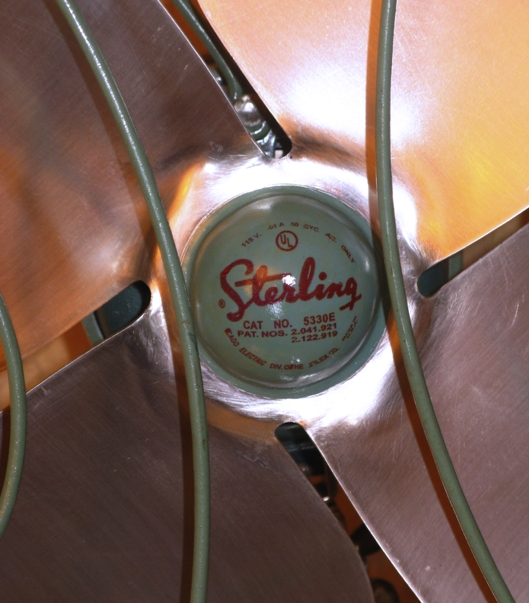

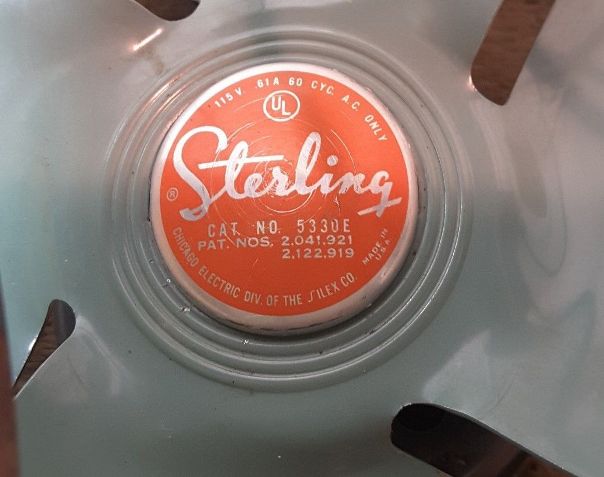

Close up of waterslide decal badge. This is a reproduction label and a very close approximation to the original, but needs a couple of repairs to be near perfect. The process of applying a flat decal over a rounded surface requires the decal to be folded in a few places in order to lay flat. This results in some overlapping of the tiny lettering around the edges. The simple fix is to cut or sand the mistake areas and reapply the appropriate lettering. This would take about an hour to accomplish.

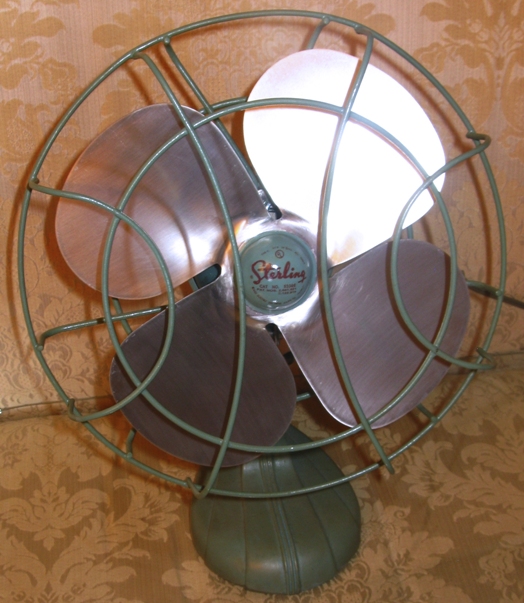

This is an image of what the center cone of the blade should look like from another fan found on the Internet. Have owned this model fan for a long time and never knew what the center badge should look like.

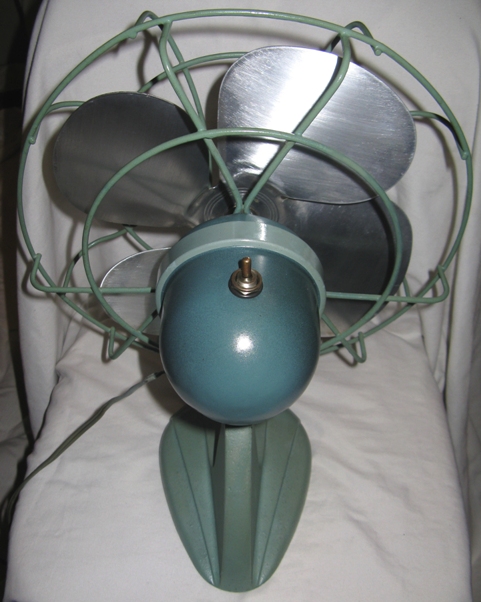

The paint is 98% original for the motor housing and base exterior. The cage, base bottom and the blade center cone have been painted. Minor touchup to the base exterior and motor housing. All is coated in a clear specialized lacquer to protect the finish and has been polished a little to tone down the gloss. The blade has a smooth brushed finish to it and is well balanced with no dings or bends.
The oscillator has a left handed screw knob for adjusting the amount of oscillation. No breaks or bends in the cage. All the colors of paint work very well together.

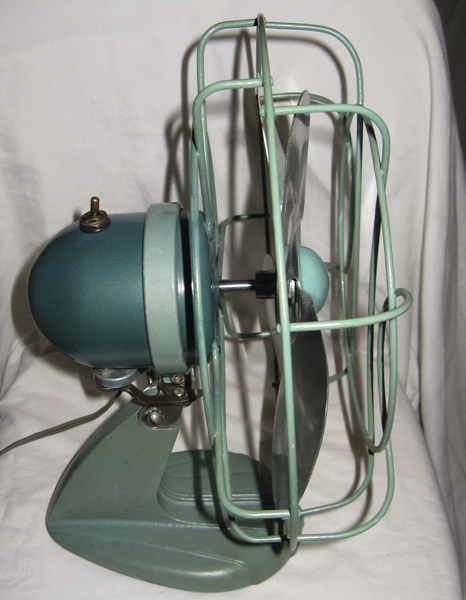

The motor housing is clamped together with a molded band that wraps around the motor housing. No screws holding the motor to the housing. The cord and plug are in excellent shape, but may not be original to the fan. Looks like maybe they were replaced in the early 1960's. Hard to say for sure.
The switch is original to the fan and operates flawlessly.

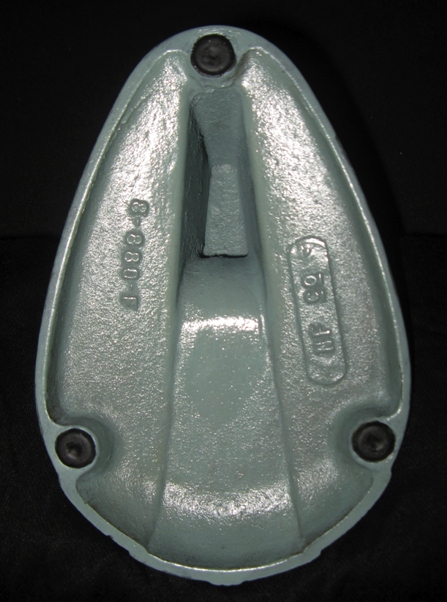

The base is cast iron and quite heavy. Has been repainted. The rubber feet are in excellent condition, but have several coats of synthetic rubber applied. The feet have been glued into place as to not fall out.

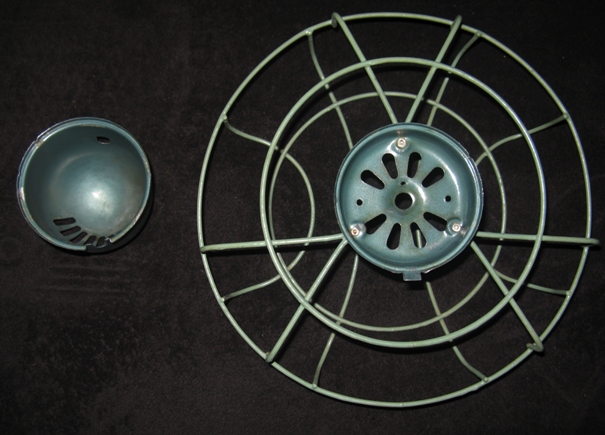

The interior of the motor housing. The cage is riveted to the front motor cover and makes removing the blade a little challenging.

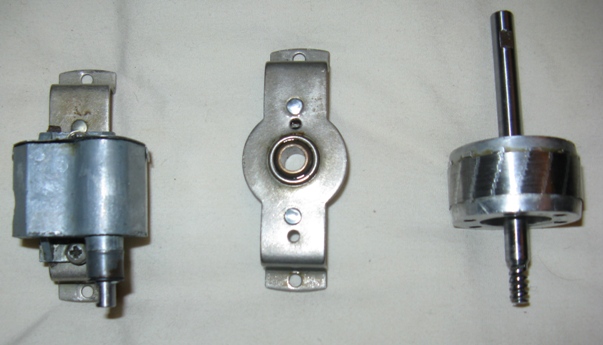

The oscillator, front bearing bracket and rotor are in excellent condition as they have been reconditioned a number of years ago.

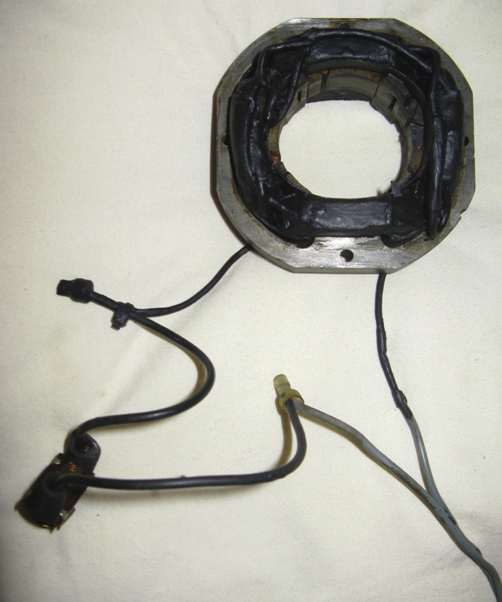

The stator has been reinsultated. This is the front side.

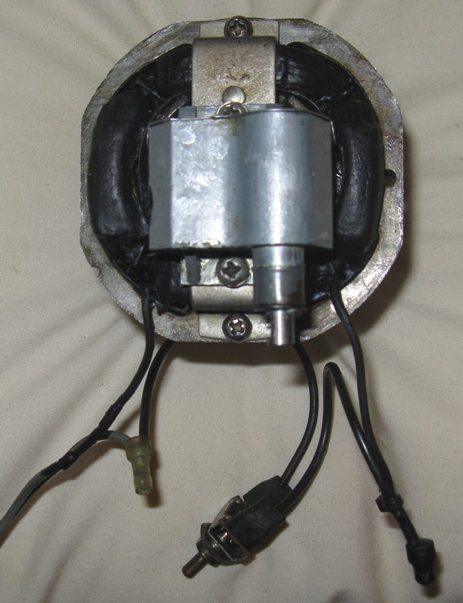

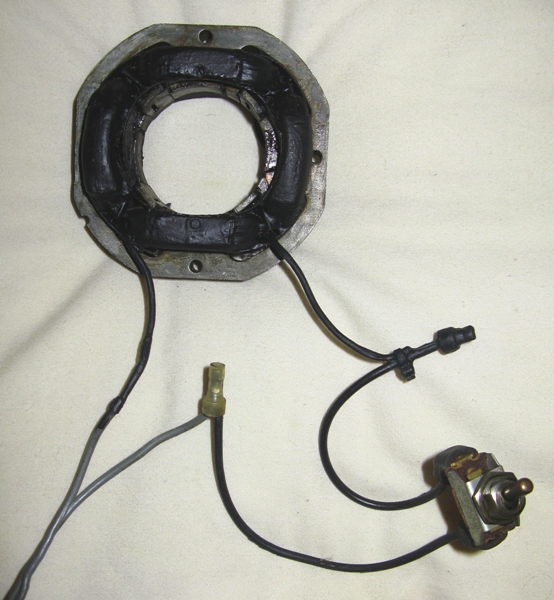

This is the rear side of the stator. The head wire and the power wire are the same in this type of single speed configuration.

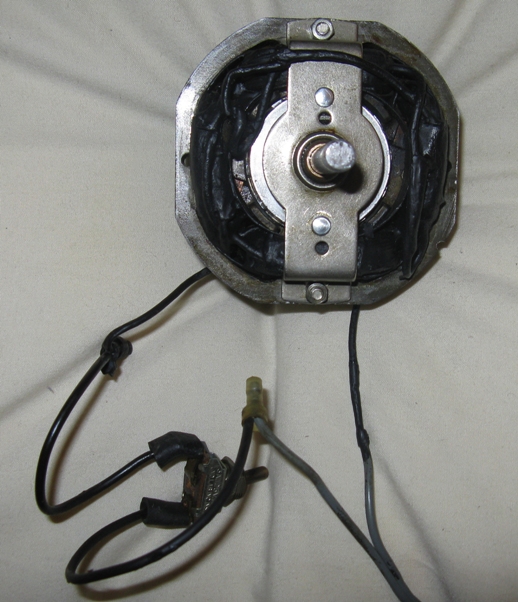

Front side of assembled motor. The wire seen going across the bearing bracket has to be in this position in order for the bearing bracket to fit properly. Yuk! What a sloppy piece of engineering. Not sure whose fault this is.
The oscillator housing needs to be on fairly tight in a more upward direction in order to get the oscillator to work. Did not see any wear on the worm gear or oscillator gears to indicate why this is the case. The rear bearing bracket sits between the stator and the oscillator and has been filled with non detergent light motor oil. Same goes for the front bearing bracket. The rotor fiber washers are original and are in excellent condition. There was an additional nylon washer added in order to take up play in the rotor shaft.

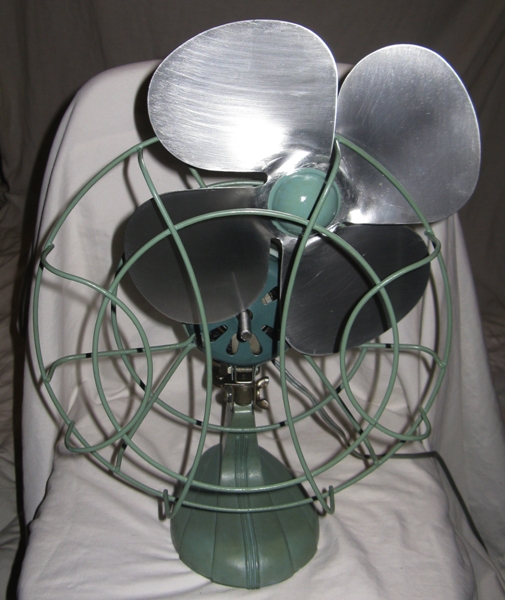

The blade can be a little challenging to get off unless you already know. The first step in getting the blade off is to loosen the set screw on the blade shaft and pull forward beyond the motor shaft. Once that is accomplished then the blade needs to be in this position.

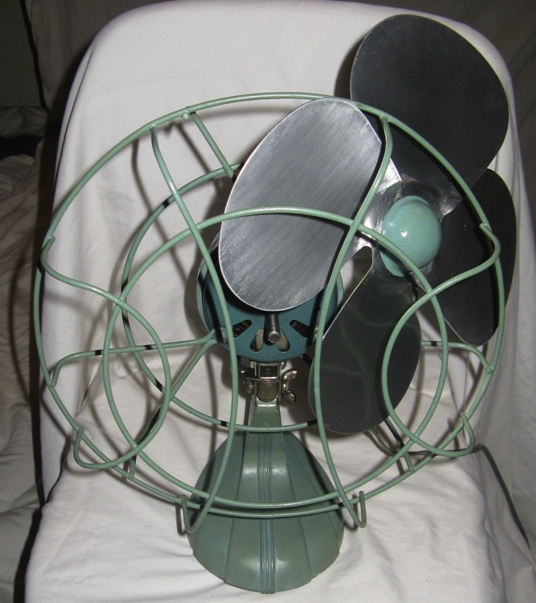

Then the blade needs to be rotated in a counter clockwise fashion so that part of the blade exits out the back side.
Then the blade needs to be lowered and rotated in a clockwise fashion so that the rest of the blade can roll out the back side.

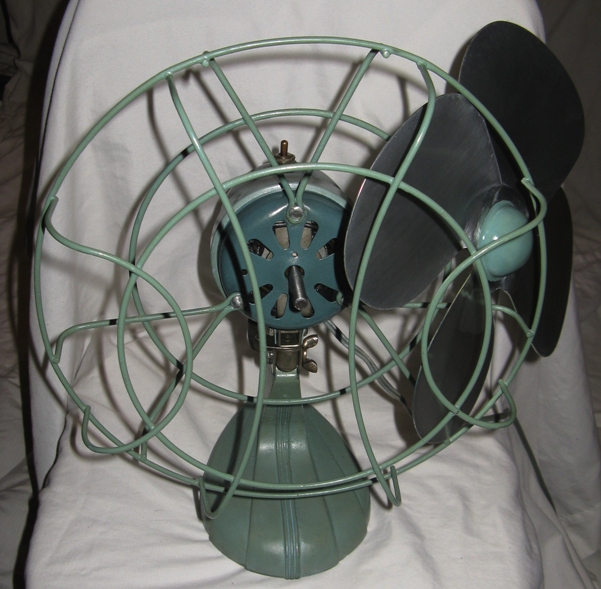

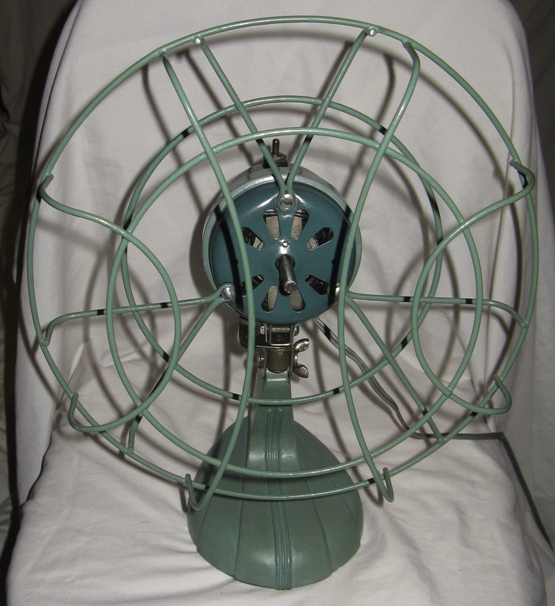

Fan without the blade. All of the bare metal pieces have been polished and lubricated. Each has been rubbed with a mineral oil dampened cloth.
Sterling Catalog 530E, 10 Inch Single Speed Oscillator, Circa 1940
A collection of images from a semi restored World War II era electric fan with an embellishment to the blade. Has a 4 pole motor with light aluminum blade. This spins at 1800 r.p.m. (under no load) and sounds a little quieter than a 2 pole motor. The effective range for this fan is 4-6 feet and is suitable as a desktop fan. Could be used as a kitchen exhaust or bathroom exhaust fan.
Not exactly a collector's item, but people like fans with rounded cones on the center of the blades.
The flash from the camera reveals imperfections and discolorations that can only been seen under magnification and under abnormal lighting conditions. You can zoom in on the images if you mouse over them. During autoplay zoom is disabled. Shrinking the browser window will shrink its contents possibly making it easier to view the gallery.
Valued in the range of $100 - $120.
